Time of Concentration Calculator

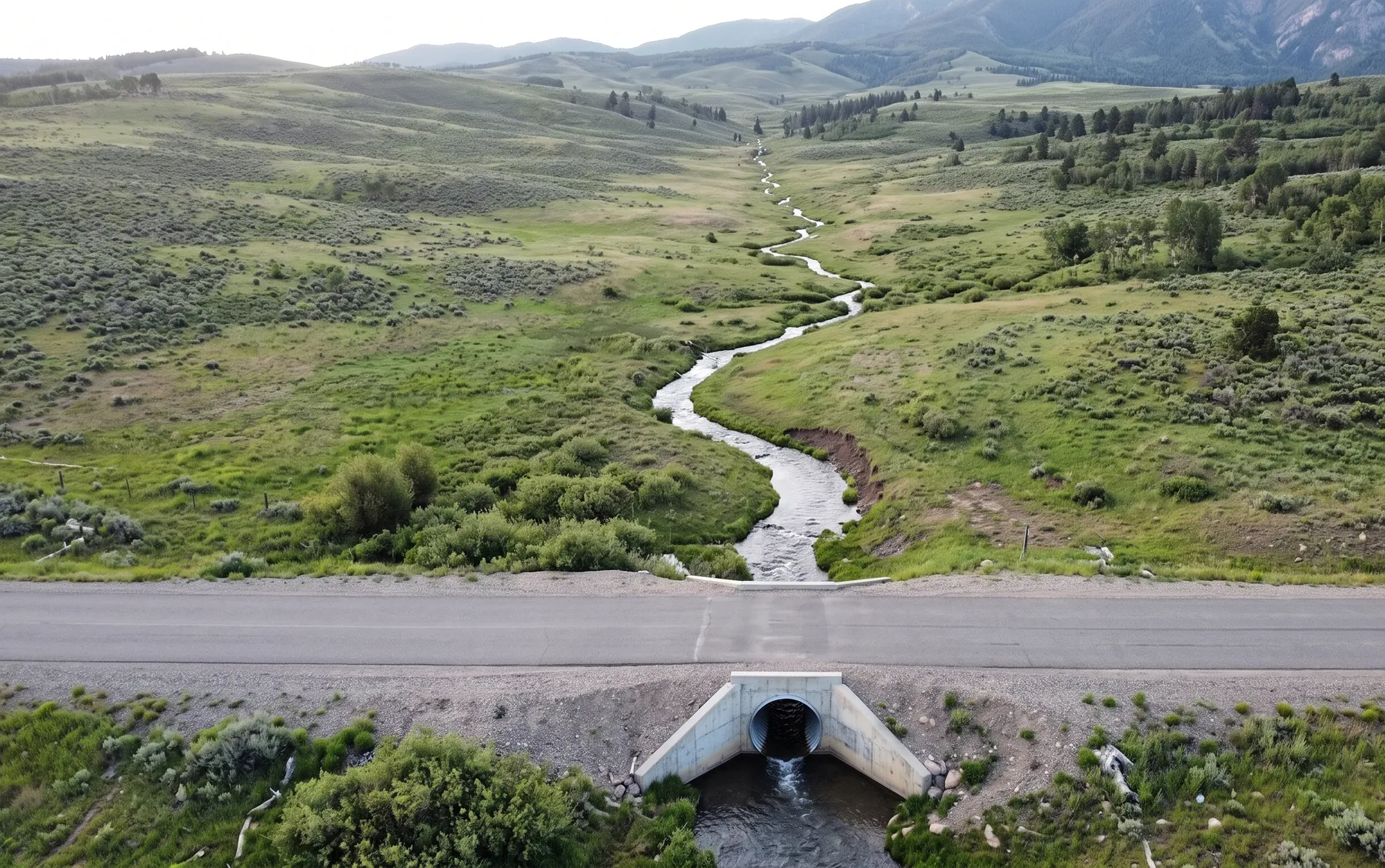

Estimate how long runoff takes to travel from the top of a catchment to your design point — the input that sets the design rainfall intensity in peak-flow methods.
Time of Concentration Calculator
About this tool: Estimates the time of concentration of a defined watercourse with the Kirpich (1940) formula and the SANRAL Drainage Manual defined-watercourse formula. The two are the same relationship in different units, so they should agree closely — a useful cross-check.
Kirpich (1940)
min
SANRAL Drainage Manual
h
39 min
The formulas
Kirpich: Tc = 0.0195 · L0.77 · S−0.385 — Tc in minutes, L the flow path length in metres, S the average slope in m/m.
SANRAL defined watercourse: Tc = (0.87 · L² / (1000 · Sav))0.385 — Tc in hours, L in kilometres, Sav the average slope in m/m.
Worked example
A watercourse 2 400 m long falling 36 m: S = 36 / 2400 = 0.015 m/m. SANRAL: Tc = (0.87 × 2.4² / (1000 × 0.015))0.385 = (5.011 / 15)0.385 ≈ 0.66 h ≈ 39 minutes. Kirpich with L = 2 400 m and S = 0.015 gives ≈ 39 minutes — the same, as expected.
These formulas assume concentrated flow in a defined channel. For the sheet-flow upper reach of a catchment, and for the pitfalls that skew Tc estimates, see our time of concentration explainer.
