What is a floodline?
A floodline (also written “flood line”) is the line on a plan that shows how far floodwater is expected to reach during a flood of a given return period, most often the 1:100-year flood. A floodline determination is the study that produces it: hydrology to estimate the design flood, then hydraulic modelling to turn that flow into water levels and a mapped extent.
The 1:100-year flood has a 1% chance of being equalled or exceeded in any year. It is not a flood that arrives once a century, and two can happen in consecutive years. Our post on 1:50 vs 1:100-year floodlines explains how the choice of event moves the line.
The legal requirements behind a floodline
Township establishment: section 144 of the National Water Act
Section 144 of the National Water Act is the reason most floodlines are drawn:
“For the purposes of ensuring that all persons who might be affected have access to information regarding potential flood hazards, no person may establish a township unless the layout plan shows, in a form acceptable to the local authority concerned, lines indicating the maximum level likely to be reached by floodwaters on average once in every 100 years.”
In practice the floodline has to exist before the layout is drawn, not after. Our post on rezoning and subdivision covers the sequence, and our guide to section 144 explains what the section requires and what it does not.
Mines: GN 704, regulation 4
Regulation 4 of GN 704, the 1999 regulations on the use of water for mining, sets two limits:
- Residue deposits, dams, reservoirs and their associated structures may not be placed within the 1:100-year floodline or within 100 m of any watercourse or estuary, borehole or well.
- Mining, prospecting and related operations may not be carried out within the 1:50-year floodline or within 100 m of any watercourse or estuary, whichever is the greatest.
A mine floodline study therefore usually maps both the 1:50-year and the 1:100-year lines. Our post on GN 704 regulation 4 also covers the clean and dirty water rules and exemptions.
Municipal requirements
Municipalities set the rest through stormwater by-laws, land use schemes, floodplain policies and conditions of approval. Most ask for the 1:100-year line for planning. Some also want the 1:50-year line, guidance on freeboard for building platforms, or setbacks from the watercourse. There is no single national rule for every application, so we confirm the events and the deliverable format with the authority before modelling starts.
Our city pages set out the rules in each metro alongside its rivers and recent floods. Our posts on floodline certificates and what each municipality allows between the 1:50 and 1:100-year lines compare the rules across municipalities, and our guide to every law that applies to a site near a river shows how the floodline fits with the other approvals.
Water use and environmental approvals
The floodline often decides two national approvals as well. The 1:100-year line, or the riparian edge where that is further out, marks the regulated area of a watercourse. Work inside it that impedes or diverts flow, or alters the bed or banks, needs a water use registration or licence. Where neither a floodline nor a riparian delineation exists, the regulated area defaults to 100 m from the watercourse, so a floodline study usually narrows it. Separately, structures within 32 m of a watercourse can need environmental authorisation; see the NEMA 32 m rule.
How long a floodline study takes
Six to twelve weeks from appointment to final report is realistic for most sites. Existing LiDAR or a recent survey can cut two to three weeks. How long a floodline determination takes breaks the programme down further.
| Phase | Typical weeks |
|---|---|
| Scoping and data assembly | 1 to 2 |
| Survey | 2 to 4 |
| Hydrology | 3 to 5 |
| Hydraulic modelling | 5 to 8 |
| Reporting and drawings | 7 to 10 |
Municipal or DWS review then follows its own timeline, usually weeks to a few months. A report the reviewer can follow without sending questions back shortens it.
What drives the cost of a floodline study
Cost depends on the site, not its size. We do not publish prices, because a figure without the scope is easily misread. What moves the price:
- the length of river to model, and the number of watercourses
- whether usable LiDAR or survey exists, or has to be flown or walked
- bridges, culverts and weirs in the reach
- 1D or 2D modelling, and how many design events are needed
- review comments that call for extra scenarios
Send us the locality and the purpose of the study, and we will send an itemised fee proposal. What drives the cost of a floodline study goes into the detail.
Who signs off a floodline
There is no separate registration category for floodlines, and no national rule on who signs. Where a municipality names anyone, it names a registered engineering professional, usually a professional engineer; Johannesburg also accepts a professional engineering technologist approved by the Johannesburg Roads Agency. Our floodline reports are signed off by Robert Fortuin, PrEng (Civil), registered with the Engineering Council of South Africa (ECSA) under registration number 202101847. Floodline certificates sets out each municipality’s rules, and who determines a floodline in South Africa lists what to ask any consultant before you appoint them.
Reviewing or updating an existing floodline
A floodline is a snapshot of the catchment, the channel and the structures at the time it was modelled. It can stop holding when:
- the catchment upstream has been developed, so more runoff arrives, and faster;
- a bridge, culvert, weir or embankment has been built, changed or removed;
- better survey or LiDAR shows the channel and floodplain differently;
- a flood has gone beyond the mapped line. eThekwini has said that floods in 2017, 2019, 2022 and 2023 exceeded the 1:100-year flood in parts of Durban.
Some municipalities set a limit: Polokwane accepts floodlines on township layouts only if they are not more than three years old.
A review starts with the original report and model. We check the hydrology against current data and methods, the terrain and structures against the site today, and the model build itself. Then we either confirm the line in writing or redo the parts that no longer hold, and document what changed so the reviewer can see why the line moved. Why floodlines go out of date covers the causes in more detail.
What causes rework
Most floodline rework we see comes from four things:
- Unclear scope. Nobody wrote down what the floodline is for (rezoning, a crossing design, a mine licence), so the study answers the wrong question.
- Missing data. There is no survey of the channel or the structures, so the model rests on coarse terrain.
- The wrong design event. A 1:50-year line delivered where the authority wanted the 1:100-year line means redoing the hydrology and the hydraulics, not just redrawing the line.
- A plan without traceability. A coloured map with no record of the rainfall, roughness and structure assumptions behind it gives the reviewer nothing to check.
Before submission, ask four questions of any floodline. Can every key input be traced to a source? Are the design events stated explicitly? Do the outputs lead to decisions on platform levels, setbacks and crossings? Are the limitations stated, such as survey gaps or uncertain structure sizes? We write our reports so the answer to all four is yes. What reviewers check lists the review points in full.
What we typically need from you
- CAD/GIS backgrounds, aerial photography, and recent survey or LIDAR for the model reach
- Municipal flood or stormwater policy references (by-laws, GDDF notes, or written requirements)
- Design event / return period expectations from planning or roads authorities
- Known structures, berms, encroachments, or debris conditions that could change conveyance
Where we add technical depth
- Hydrology assumptions traced to each hydraulic scenario and mapping slice
- 1D/2D mesh and scheme choices documented, with sensitivity where reviewers expect it
- Clear distinction between planning floodline, operational, and residual-risk interpretations when multiple apply
- Assumptions register and figures formatted for municipal, environmental, or internal peer review
When do you need this?
- Township establishment: section 144 of the National Water Act requires the 1:100-year floodline on the layout plan
- Rezoning, subdivision or departure applications for land next to a river, stream or drainage line
- Mines: GN 704 keeps residue deposits, dams and mining operations outside set floodlines
- Environmental authorisation and water use licence applications for work in or near a watercourse
- Building plans on an erf that a floodline may cross
- Road and bridge crossings, and rebuilding after a flood where the hydraulics must be shown
- An existing floodline that is old, or that new development, a new crossing or a large flood has overtaken
- Lending, insurance or due diligence that needs a mapped flood extent
Our approach
-
Confirm the design event and scope
We agree the return periods, the purpose of the floodline and what the reviewer expects with the municipality or DWS before modelling, so the line is drawn for the right event the first time.
-

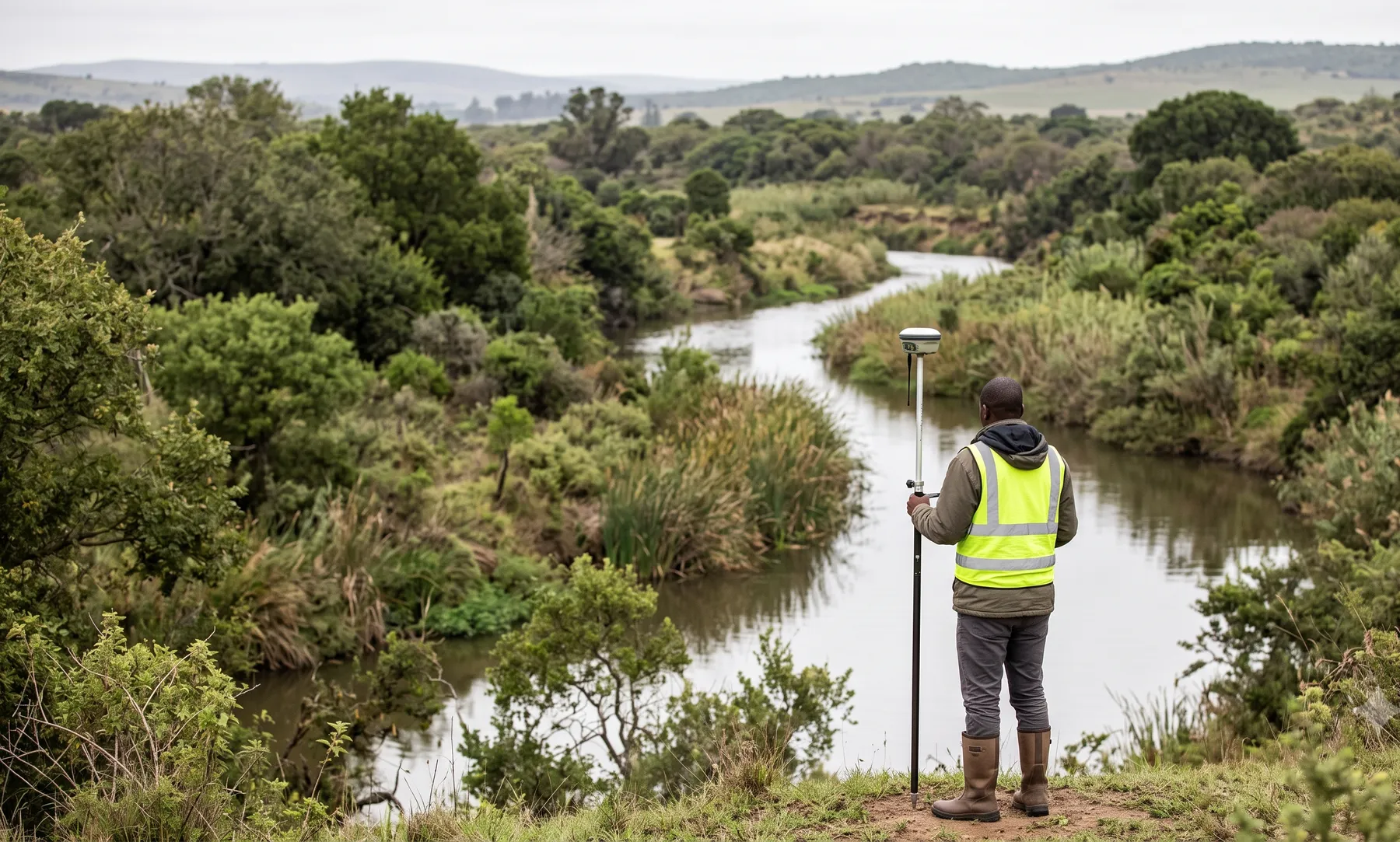

Survey and terrain
We use LiDAR or a recent site survey where it exists, and add drone or ground survey of the channel, bridges and culverts where it does not.
-
Hydrology
We estimate the design floods with more than one method, such as the Rational and SCS-SA methods, compare the results and document the flows we adopt.
-
Hydraulic modelling
We build a 1D, 2D or coupled model in HEC-RAS or PCSWMM on the surveyed terrain, include the structures, run each design event and test how sensitive the floodline is to roughness and blockage.
-
Floodline plan and report
You receive the floodlines as GIS and CAD layers and a report a second engineer can check, signed off by a registered professional engineer.
What you'll receive

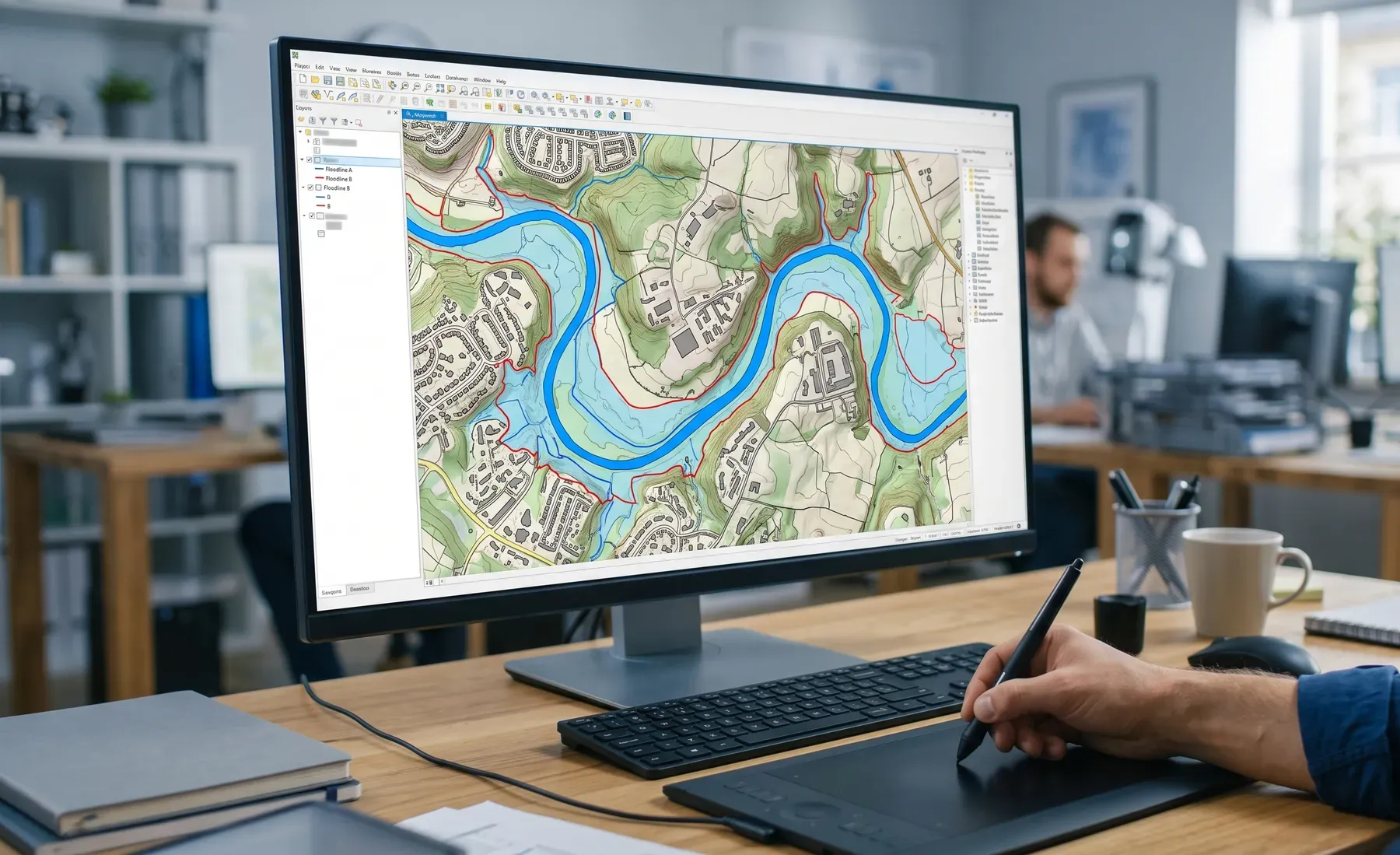

- Floodlines for each design event as GIS and CAD layers, in the coordinate system your surveyor and town planner use
- Flood depth and velocity maps where the authority or the design needs them
- Hydrology memorandum: catchments, design rainfall, methods and adopted design floods
- Report covering survey, model build, assumptions and limitations, signed by a registered professional engineer
- Recommendations the layout can use: setbacks, platform levels and crossing requirements
Relevant SA standards
- National Water Act (Act 36 of 1998), section 144: floodlines on township layout plans
- GN 704 (1999), regulation 4: floodline limits for mine residue deposits, dams and operations
- SANRAL Drainage Manual: design flood estimation methods
- Municipal stormwater by-laws and floodplain policies, which differ between municipalities
- NEMA and DWS water use licence requirements where the work affects the watercourse
FAQ
What is a floodline (flood line)?
A floodline is the line on a plan showing how far floodwater is expected to reach in a flood of a given return period, most often the 1:100-year flood. "Floodline" and "flood line" mean the same thing. The 1:100-year flood has a 1% chance of being equalled or exceeded in any year.
Which return period applies: 1:50 or 1:100 year?
Section 144 of the National Water Act requires the 1:100-year floodline on township layout plans, and most municipalities ask for the 1:100-year line for planning. Some also ask for the 1:50-year line, and GN 704 uses both for mines. There is no single national rule for every application, so we confirm the events with the authority before modelling.
How much does a floodline study cost?
It depends on the site rather than its size: the length of river to model, whether usable survey exists, the bridges and culverts in the reach, 1D or 2D modelling and the number of design events. We do not publish prices, because a figure without that scope is easily misread. Send us the locality and the purpose of the study, and we will send an itemised fee proposal.
How long does a floodline determination take?
Six to twelve weeks from appointment to final report is realistic for most sites. Existing LiDAR or a recent survey can cut two to three weeks. Municipal or DWS review then runs on its own timeline, usually weeks to a few months.
Who can sign off a floodline?
There is no separate registration for floodlines and no national rule on who signs. Where a municipality names anyone, it names a registered engineering professional, usually a professional engineer; Johannesburg also accepts a professional engineering technologist approved by the Johannesburg Roads Agency. Our floodline reports are signed off by Robert Fortuin, PrEng (Civil), ECSA registration number 202101847.
Can you update or review an existing floodline?
Yes. An older floodline may no longer hold if the catchment has been developed, a crossing has changed or better survey is now available. We check the original model, terrain and structures, then either confirm the line or redo the parts that no longer stand, and document what changed.
Do you include climate change?
Where the brief or the authority asks for it, we run agreed rainfall increases as sensitivity scenarios and show how far the floodline moves. Section 144 itself does not require it.
Is a flood line the same as the regulated area or the 32 m line?
No. The 1:100-year flood line is a hydraulic line from a flood model. The regulated area of a watercourse, which decides whether work needs a water use authorisation, runs to the 1:100-year line or the riparian edge, whichever is further, or 100 m from the watercourse where neither has been determined. The 32 m distance is a NEMA trigger for environmental authorisation, measured from the edge of the watercourse. A floodline study usually narrows the regulated area compared with the 100 m default.
How old can a floodline be?
There is no national limit. Polokwane accepts floodlines on township layouts only if they are not more than three years old, and any reviewer can reject a line that no longer reflects the site, for example after upstream development, a new crossing or a large flood. We can review an older floodline and confirm or update it.
What do you need from us to start?
The site location and boundaries, the reason for the study (rezoning, township layout, building plan, crossing or mine infrastructure), any survey or LiDAR you hold, and the municipality's requirements if you have them in writing. If you have no survey, we can arrange it.
