Bridge Waterway Assessments: Afflux, Freeboard and Scour Explained

Most bridge failures in floods are not structural in origin — they are hydraulic. The water finds the bridge’s relationship with the river wanting, and the structure follows. A bridge waterway assessment is the exercise of checking that relationship before the flood does, and it comes down to four questions: can the opening pass the flood, how much does the bridge back the water up, is there enough clearance, and will scour undermine the foundations.

Assessing an existing bridge or designing a new crossing? We model afflux, freeboard, and scour together — because they are one problem, not four, and the answers feed each other.

Hydraulic modelling

Capacity: can the opening pass the design flood

The first question is whether the waterway opening — the gap the bridge leaves for the river — is big enough to pass the design flood without the structure itself becoming the constriction. A bridge that squeezes the river raises upstream levels and accelerates flow through the opening, which feeds directly into the next three questions. Capacity is the anchor; everything else follows from how hard the opening is working.

Afflux: the backwater a bridge creates

Afflux is the rise in water level upstream of the bridge caused by the bridge constricting the flow — the backwater effect. Every bridge that narrows the natural waterway creates some afflux; the question is how much, and who it affects. Excessive afflux floods property and land upstream that would otherwise stay dry, and it is a common source of dispute and liability. Quantifying afflux is one of the main reasons a bridge gets modelled at all.

Freeboard: clearance above the flood

Freeboard is the vertical clearance between the design flood level (raised by the afflux) and the underside — the soffit — of the bridge deck. Adequate freeboard keeps debris from jamming against the deck and stops the flow from pressurising and lifting the superstructure. Too little freeboard turns the bridge into a dam in a large flood, with debris rafting against it, and the loads escalate quickly from there.

Scour: the leading cause of bridge failure

Scour is where bridges are lost, and it comes in layers that add together:

• Contraction scour — the general lowering of the bed through the opening because the bridge has squeezed the flow and sped it up.
• Local scour at the piers and abutments — the holes that form around obstructions in the flow as vortices excavate the bed right where the foundations are.

Add debris loading — which effectively widens the piers and deepens the local scour — and you have the mechanism behind most flood-related bridge collapses. The foundations are undermined before anything visible happens above water.

How the assessment works

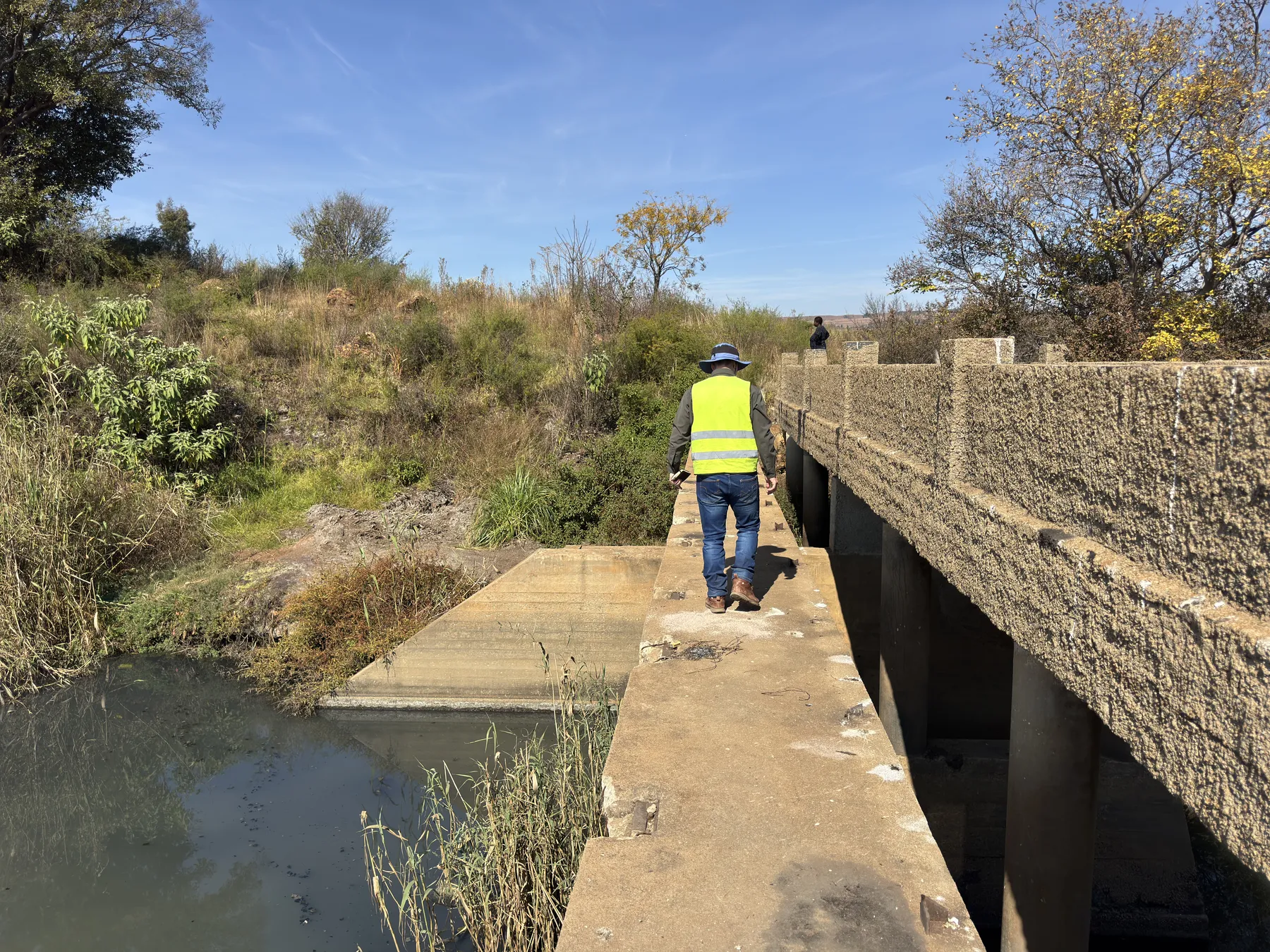

The workflow is consistent: survey the bridge, the river, and enough of the reach up- and downstream — including the bed beneath the water, which usually needs a bathymetric survey because LiDAR stops at the water surface; build a hydraulic model that represents the opening, the piers, and the approach; and deliver a verdict on capacity, afflux, freeboard, and scour against the design flood. The model is where the four questions get answered together, because they are not independent — afflux drives freeboard, and the contraction that raises afflux is the same one that drives scour.

Red flags an owner can spot between inspections

Owners do not need a model to notice trouble developing. Worth flagging for assessment: debris regularly caught on the piers or deck; a visible scour hole or exposed pier foundation at low flow; eroding or slumping approach embankments; the channel migrating so flow hits the piers at an angle; and high-water marks close to the soffit after floods. Any of these is a reason to bring the formal assessment forward rather than wait for the scheduled inspection.
